Thông số sản phẩm

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

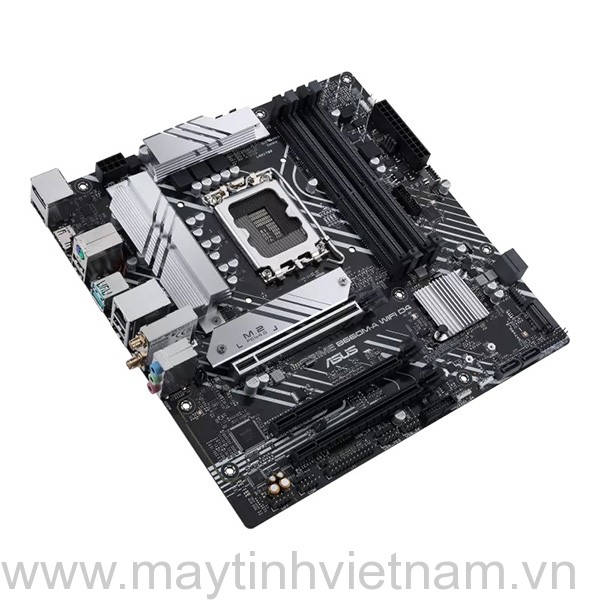

PRIME B660M-A WIFI D4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4

5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC

Khe cắm mở rộng

Intel® 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel® B660 Chipset *

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x16 slot (supports x1 mode)

Ổ cứng hỗ trợ

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset **

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x USB 2.0 header support 1 USB 2.0 port

Miscellaneous

3 x AURA Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x LPT header

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

Cổng kết nối (Back Panel)

2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

2 x HDMI® ports

1 x Wi-Fi Module

1 x Intel® 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

Kích cỡ

microATX
24.4cm x 24.4cm
