Model |

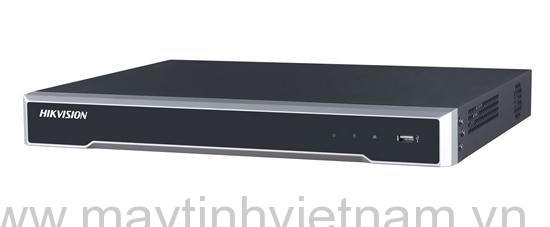

DS-7604NI-K1 (B) |
|
Video/Audio input |
|
|
IP video input |
4-ch |
|
Two-way audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
Network |
|
|
Incoming bandwidth |
40 Mbps |
|
Outgoing bandwidth |
80 Mbps |
|
Video/Audio output |
|
|
Recording resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
HDMI output resolution |
1-ch, 4K (3840 × 1920 × 1080p/60Hz, 1600 ×2160)/30Hz,1200/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, 1024 ×768/60Hz;HDMI/VGA simultaneous output |
|
VGA output resolution |
1-ch, 1920 × 1080p/60Hz, 1600× 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz; HDMI/VGAsimultaneous output |
|
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
|
Decoding |
|
|
Decoding format |
H.265/H.265+/H.264/H.264+/MPEG4 |
|
Live view / Playback resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Synchronous playback |
4-ch |
|
Capability |
1-ch @ 8 MP / 4-ch @ 1080p |
|
Network management |
|
|
Network protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
|
Hard disk |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 6TB capacity for each disk |
|
External interface |
|
|
Network interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
USB interface |
2 × USB 2.0 |
|
General |
|
|
Power supply |
12 VDC |
|
Power |
≤ 18W |
|
Consumption (without hard disk) |
≤ 10 W |
|
Working temperature |
-10 to +55º C (+14 to +131º F) |
|
Working humidity |
10 to 90 % |
|
Chassis |
1U chassis |
|
Dimensions (W × D × H) |
315 × 240 × 48 mm |
|
Weight(without hard disk) |
≤ 1 kg |
